Thorian USB Interface

For all other Thorian devices, see the Thorian section

Overview

This device is the bridge between Open Source Automation PC software and the Thorian wireless devices.

The interface connection to te PC itself is via a USB to serial (TTL) converter lead. This allows direct connection straight into the microcontroller (note this is not an RS232 interface).

Data received from the PC then gets converted and broadcast over the RF transmitter.

Also visa versa, correct data received is passed from the module to the PC.

Quick Fast‑Track Build

Parts List

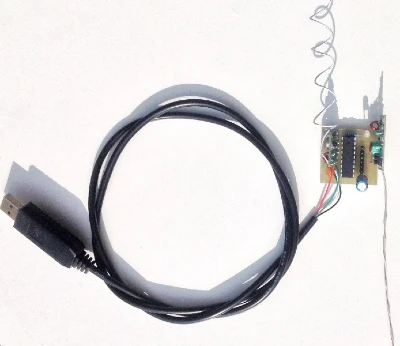

USB → TTL serial cable (e.g. from eBay)
434 MHz AM RX/TX module pair (310 MHz for USA)
PIC16F88 microcontroller (pre‑programmed with PCUSB21.hex below)
3 mm bi‑colour LED + 330 Ω resistor
100 µF electrolytic capacitor

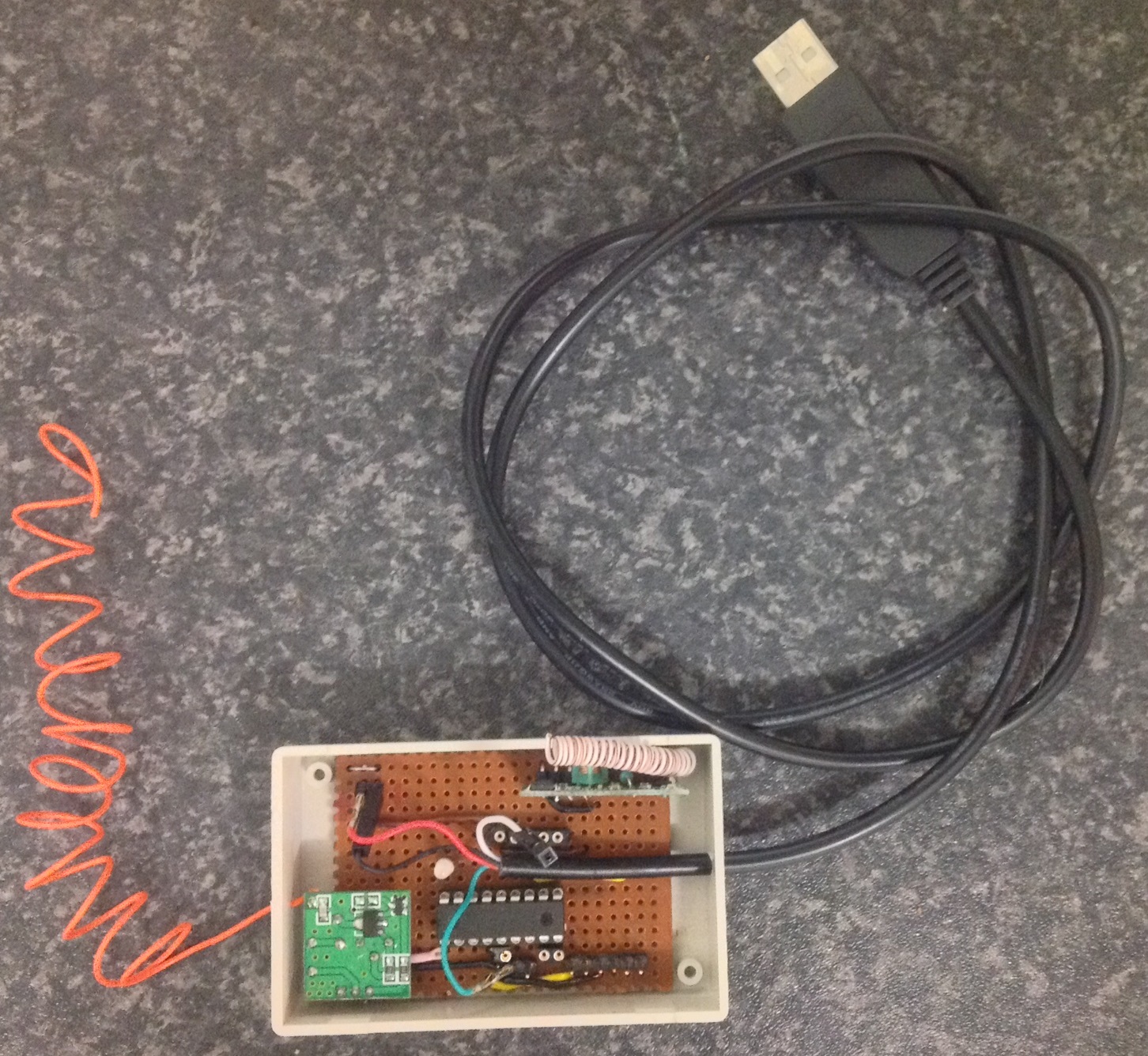

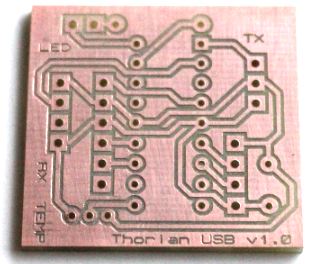

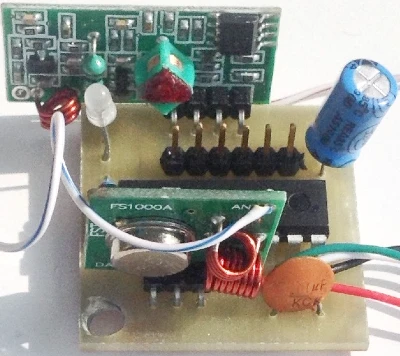

Veroboard or pre‑designed PCB

Initial testing of the USB cable

Follow the instructions to install the drivers on the Windows PC. You can test that the USB to serial lead is working by shorting the RX and TX together (careful not to short anything else).

Select the comm port in the windows test program.

Any commands sent from the test program should appear in the receive window. Fill some numbers into the address, data1, data2 and data3. click send command. The data should appear as a received command.

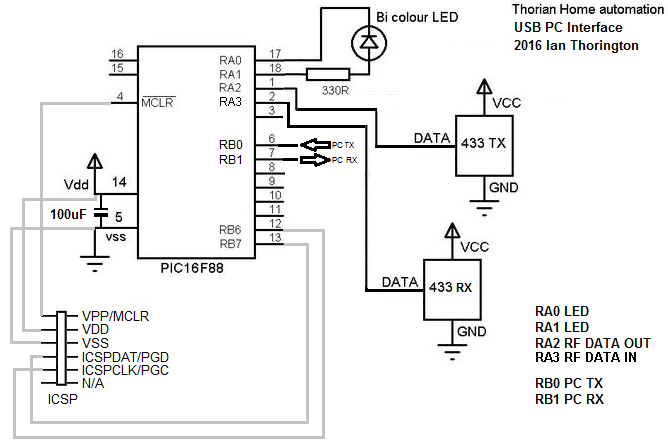

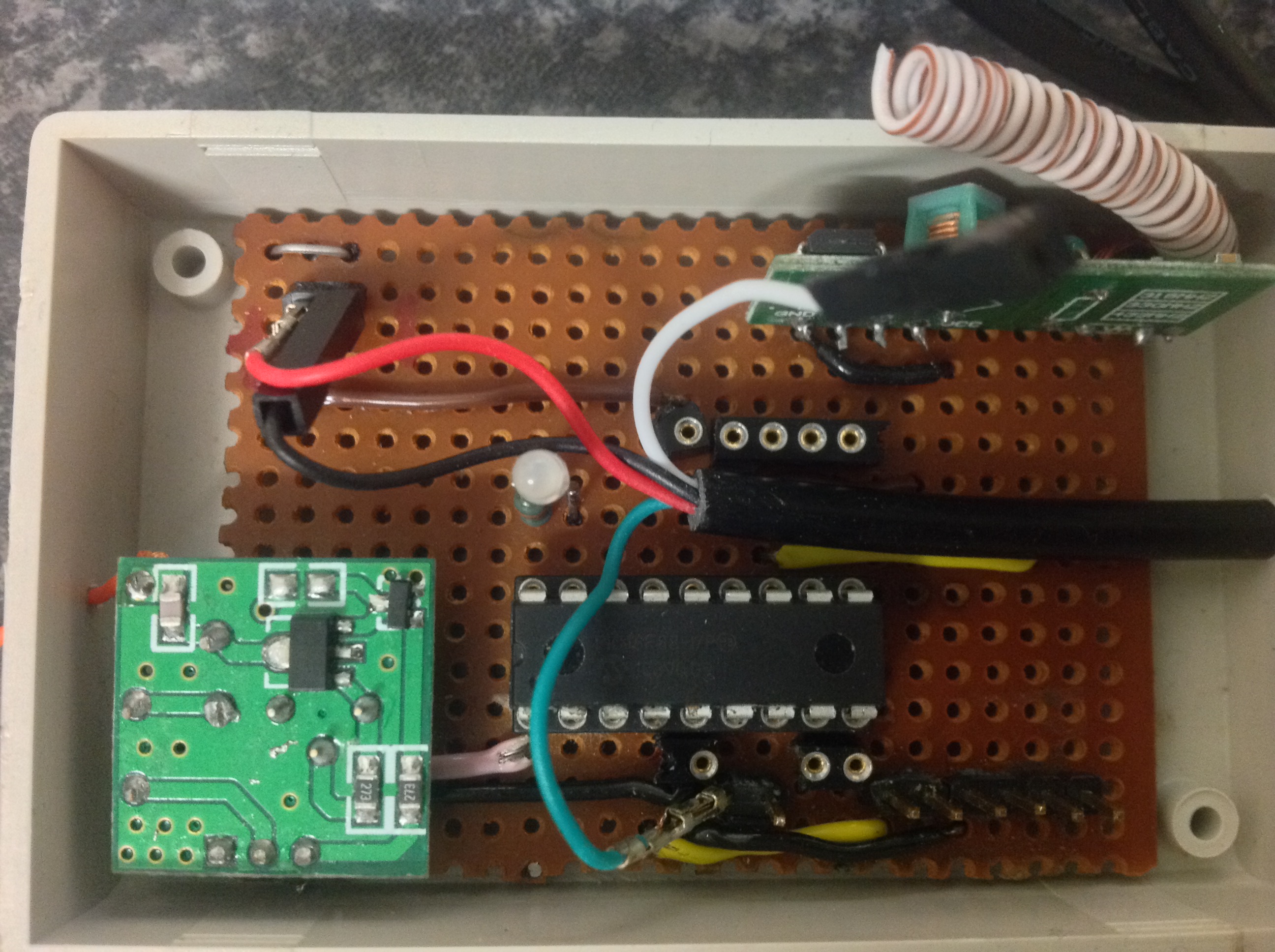

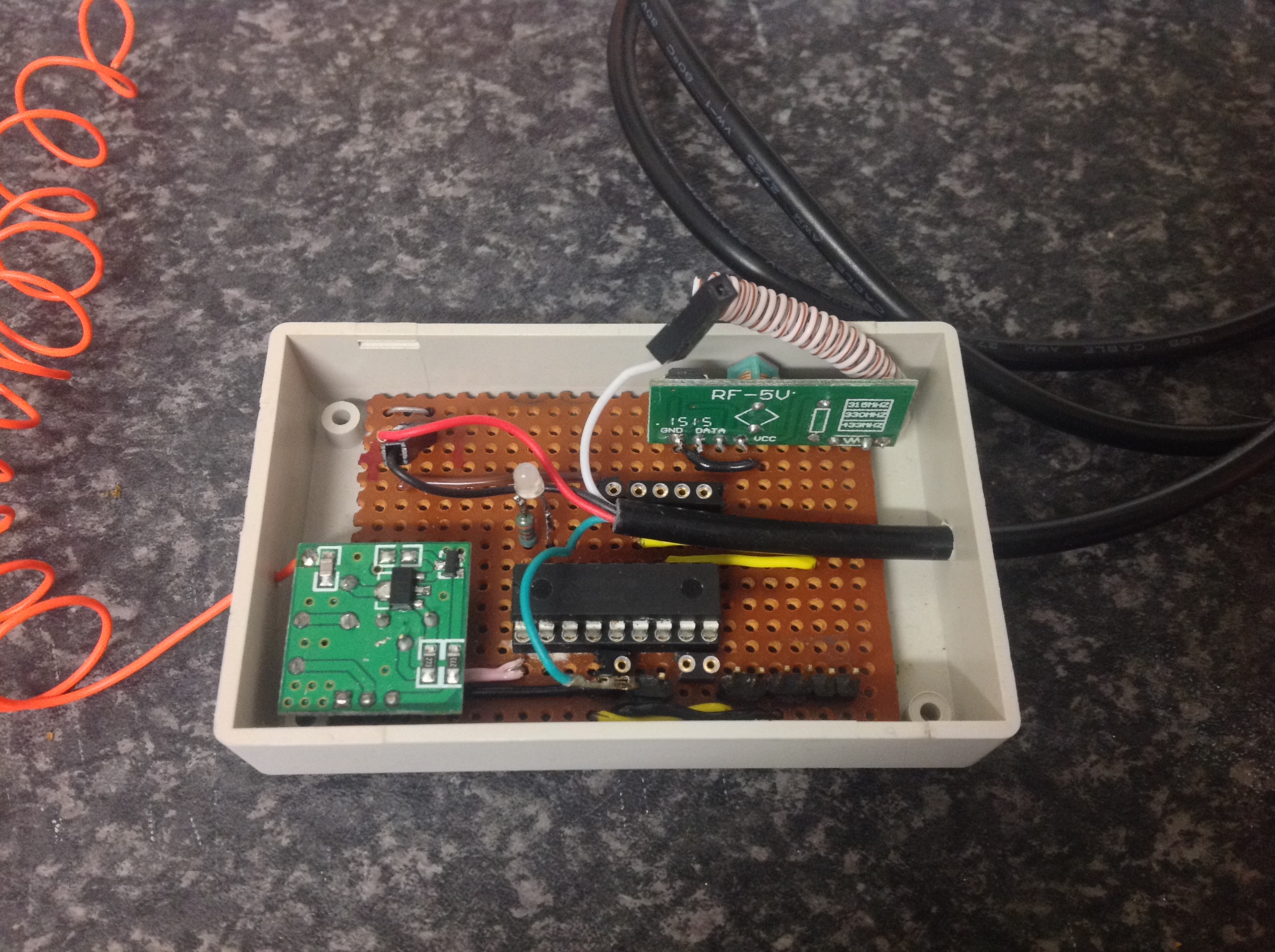

Wiring & Assembly

Solder USB cable wires:
Red → V_CC (5 V)
Black → GND
Green (PC TX) → RB0
White (PC RX) → RB1
Connect:
RF TX data line to RA2
RF RX output to RA3
Include an ICSP header for easy PIC re‑flashing.

Operation

Plug USB‑TTL into PC: LED stays green when idle
Run Test App, select COM port → Connect
Set Address ≠ 1 & Data fields to anything, click RGB button → Send
LED flashes red on transmit; flashes green (valid) or double‑flash (invalid) on receive

Downloads

PCUSB21.hex
Proteus Simulation (.ZIP)
Thorian Test Software page coming soon

Advanced - Show code, timing diagrams & packet format

TTL‑Serial Transmit Routine

TTLtx:
  MOVWF divisor
  MOVLW D'8'
  MOVWF byteL
  bcf PORTB,1  ; start bit
  MOVLW D'9'
  call uSdelay
mainLoop:
  btfsc divisor,7
  bsf PORTB,1
  call uSdelay
  rlf divisor,F
  decfsz byteL,F
  goto mainLoop
  bsf PORTB,1  ; stop bit
  MOVLW D'9'
  call uSdelay
  return

RF Transmit Packet

RFtx:
  bsf PORTA,2  ; AGC on 9ms
  MOVLW D'18'
  call MSdelay
  bcf PORTA,2  ; AGC off 4.5ms
  MOVLW D'9'
  call MSdelay

  movf deviceaddress,W  ; copy deviceaddress value to W
  movwf data1			 ; copy W to data1
  call doRFbyte		 ; go transmit data1
  ; repeat for devicecommand, devicecommand2, devicecommand3

  bsf PORTA,2  ; stop-burst 670us, wait time before any more data can be transmitted
  MOVLW D'33'
  call uSdelay
  bcf PORTA,2 ; switch off TX
  return

Bit timing	Mark (RA2=1)	Space (RA2=0)
AGC Burst	9 ms	4.5 ms
Bit “1”	330 µs	800 µs
Bit “0”	330 µs	230 µs
Stop‑burst	670 µs	—

RF Receive & Validation

RFgetByte:
  clrf tempdata
  MOVLW D'8'
  MOVWF counter
getLoop:
  MOVLW D'40'
  call uSdelay
  rrf count,F
  btfss PORTA,3
    goto skipSet
  iorwf tempdata,F
skipSet:
  decfsz counter,F
  goto getLoop
  return
